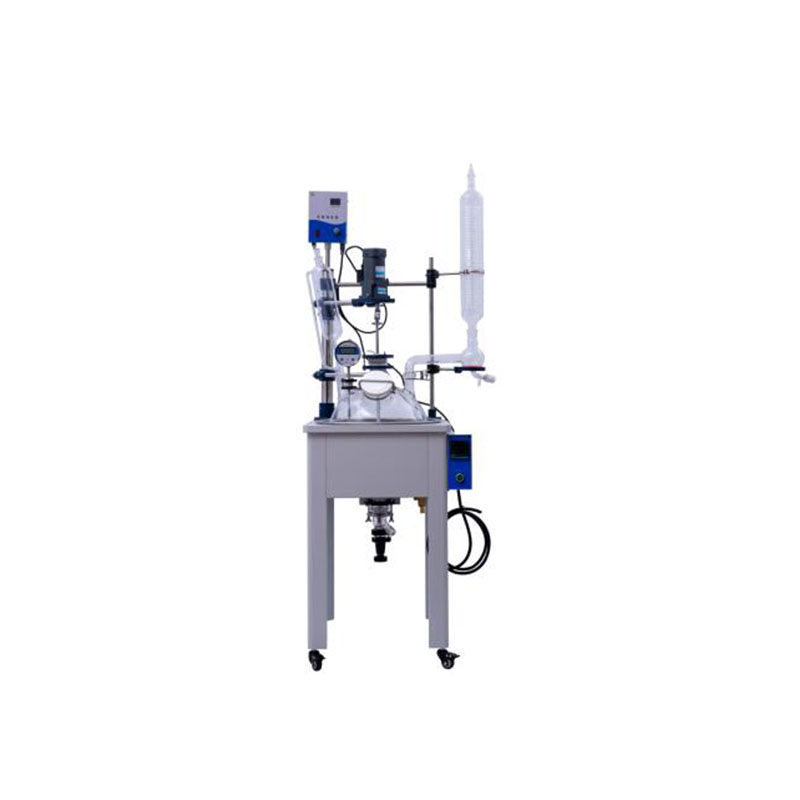

100l glass reactor DF-100L

The 100L Glass Reactor is a high-performance, reliable large-scale reactor for a variety of laboratory and small-scale production applications. The reactor adopts a dual-section design, with the upper section made of glass and the lower section made of stainless steel. This combination not only enhances the corrosion resistance of the reactor, but also facilitates the observation of color changes and precipitation during the reaction process. The double-section design also makes the reactor more uniform in the heating and cooling process, thus improving the reaction efficiency.



Product Features.
1. Distillation and reflux can be realized simultaneously;
2. Special long-lasting stirring seal;
3. Material contact with GG17 glass and PTFE, no cross-contamination;
4. Digital speed display and high and low temperature display, easy to operate;
5. Large cleaning port, easy to clean;
6. Large discharge valve, can put solid and liquid;
7. Intelligent (oil, water bath heating or electric jacket heating).

Product Parameter Table
technical specification	model number	DF-100L
	Overall dimensions (mm)	730*650*2560
	Bath size	620*600
	Outer package size (mm)	1900*990*930
	weight (KG)	83
	Kettle volume（L）	100
	Voltage/Frequency（V/Hz）	220/50
	reaction temperature（℃）	indoor temperature-299
	Reachable vacuum level（ MPA）	-0.098
	Mixing speed（rpm）	0-600
	Motor power (w)	250/Explosion-proof 370
	Heating power (w)	7.5
Functional configuration	Sealing form	polytetrafluoroethylene
	agitation	Anchor Stirring Bar
	Number of ports of kettle lid	Six ports (feeding hole, reflux hole, temperature measuring hole, drip filling hole, venting hole, stirring hole)
	kettle	ball-shaped
	Glass material	GG-17 High borosilicate glass
	Material discharge	Tetrafluoro Spool Glass Discharge Valve
	dripping	2000ml constant pressure funnel
	control system	Intelligent Digital Display Controller
	Heating Tank	Inner liner 304 stainless steel
	organizing plan	304 stainless steel
	condensers	Vertical high-efficiency double reflux condenser tube
	foot valve	Φ75
	other	Customized modifications available upon request

detailed drawing
